High quality plastic mould from China

FOB Reference Price:Get Latest Price
US $6,000-7,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hiparter
Model Number:
HPTZJL46552
Shaping Mode:
Plastic Injection Mould
Product Material:
Plastic
Product:
Household Appliance
Mould materialg:
NAK80,2344,2312 etc.
Mould life:
Over 300,000 shots
Mould tolerance:
+/-0.02mm
Mould base:
HASCO,MISUMI,Standard base
Mould spring:
Steel spring
Certification:
ISO9001:2008 TS16949
Service:
OEM/ODM acceptable
Mould cavity:
Based on the product structure
Experience:
More than 15 years in plastic mould
Main equipment:
CNC,Spark,Grinding,Drilling,Engraving,WEDM,Lath etc.
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden cases with ree fumigation or according customer requirements
Port
Qingdao
Lead Time :
About 3~4 weeks after mould structure drawing confirmed

High quality plastic mould from China

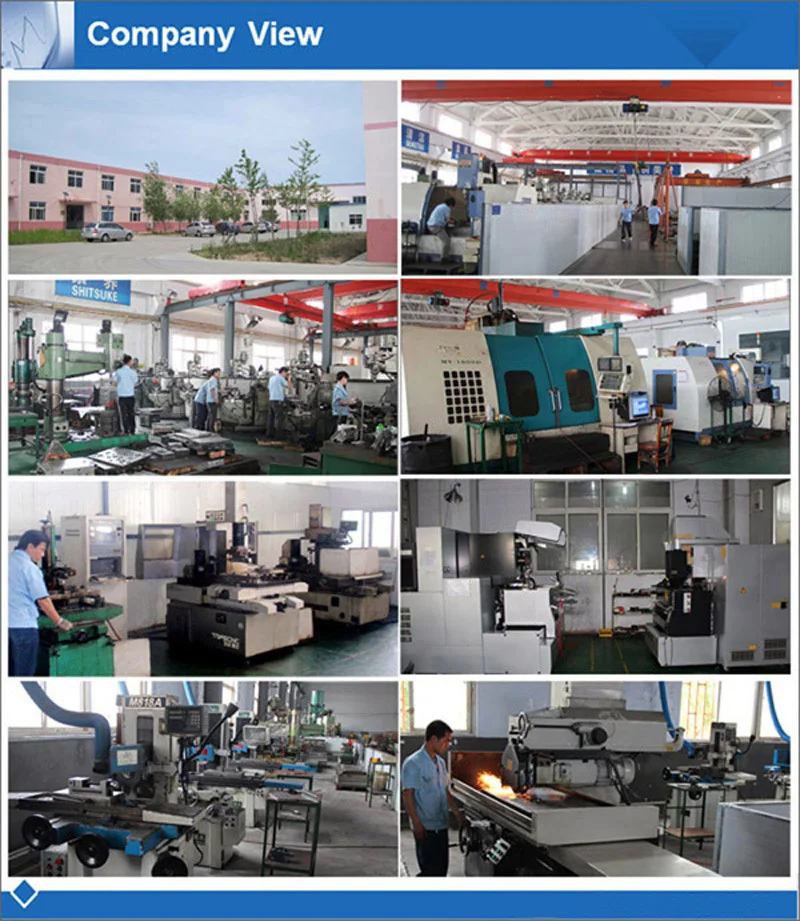

Company Information



Building time: built in 2003, over 15 years rich experience for plastic making
Location: we are located in Chengyang District, Qingdao, China,  Which is very near from the Qingdao Liuting International Airport, only 15 minutes for driving.  So, it is very convenient for your visiting our factory.
Area: 20,000 square meters
Employees: about 300 staffs, with a professional working team
Certification: ISO9001:2008 by SGS
Main equipment: about 55 sets, including CNC, WEDM-LS, Bending machine, Milling Machine, Press Machines and so on
Plants: 5 workshops, including mould making,injection workshop, parts assembling and so on.
Inspection: CMM, vision projector, depth guage, altimeter, durometer
Die design: 2D/3D Software (Pro-E, UG, SolidWork, AutoCAD, CAE etc.)
Design: We have our own mould design department. There are 23 design engineers. 10 engineers for stamping dies, 13 engineers for plastic moulds.
Capability:Design and Making plastic injection mould,and injection moulding production
Export Markets: North America, South America, Europe, Asia, Africa, Brazil, Japan, Korea, Egypt, etc
One stop service----product design, die design, die manufacture, production of products. Plating, painting, and so on.
Production: about 40 sets moulds monthly
Technology support: Free. English, Korean, German can be acceptable
Customer: KIA, TOYOTA, GM, Haier, Hisense, Sanyo, Siemens etc.
Exporting: 70% , Our moulds exported over 30 countries, from USA, Mexico, Japan, Iran to Germany, UK, Egypt, South Africa, to India, Russia, Brasil, Argentina etc.



Plastic injection mould ,making workshop





Product Description



Product name

high quality plastic injection mould from China

Mold type

Palastic inejction mould

Material of mold

SKD61,NAK80,2738,2344,2312,P20 etc.

Mould life

100,000~1,000,000 shots

Sheet Format

stp, prt, pdf, dwg, dxf, .igs, .x_t etc.

Design software

PRO/E, Auto CAD, Solid Work , UG , Master CAM etc.

Capability

Annual output 300~500 sets of moulds

First Trial

25~60 days after mold drawing confirmed



Quality guarantee

You will confirm our plastic mould according

to sample. If you need to adjust the product structure,

we can help you to change it further.

Delivery

Ship the plastic molds after it is completely OK,

 packed as per customers' requirements



Some molds that we produced,such as automotive plastic parts,home appliance plastic parts and other electrical plastic parts

White ABS plate plastic injection parts











Home appliances plastic parts,including washing machine plastic parts,icebox plastic parts and TV outer covering plastic parts and so on







Engineering Dept

 We have our own powerful engineering department for designing high quality plastic moulds.



Processing



When we get your inquiry for the high quality plastic moulds, we will do as follows,



1.Inquiry

You can send us your drawings or samples for quotation, 2D & 3D drawing are both acceptable.

      ↓

2.Quotation

We offer the quotation according to your parts structure, mold requirements, quantity ...

      ↓

3.Make an order

We have an agreement with each other after communication.

      ↓

4. Mold design

Our engineers design the mould strucuture with CAD, and we send it for your confirmation. After you think it ok, we will start to order the material and make a build plan for this project.

      ↓

5.Mold Fabrication

According to the progress, we start the mold with the CNC machine center and W-cut, grinding etc.

      ↓

6. Mold Trial

We will make the mold trial, and offering 2-5 samples when the mold spproved

      ↓

7. Leaving factory

Delivery mold by sea or by air, according to your need





Our Customers



Foreign customer visit our company





Home appliances customer:



Automotive customer:







Packaging & Shipping

Packing:
For Outside packing: Plywood case, wooden case, etc.
For Inside packing: Rust prevent oil to keep the surface smooth and bright, warp with plastic, etc.
Shipping:
Trial samples:
Express---DHL, FedEX,UPS, TNT, and so on
Die delivery:
Domestic--- by road, by air, or others
Overseas---by air, by sea
By air around 2-5 days. By sea around 15-40 days.
Usually we use wooden cases or plywood cases for the packaging.
With rich experience in exporting, we can choose reasonable packaging for you to reduce the shipping risk.
Of course you can appoint the packaging according to your requirement. We can try our best to satisfy you.

The Dies&Moulds Packaging

For the samples,we usually chose the international express,such as DHL,UPS,FEDEX and TNT.

For the dies&moulds,chose the ship to rduce the cost.But for the emergency project,by the air.



The Purpose Country
